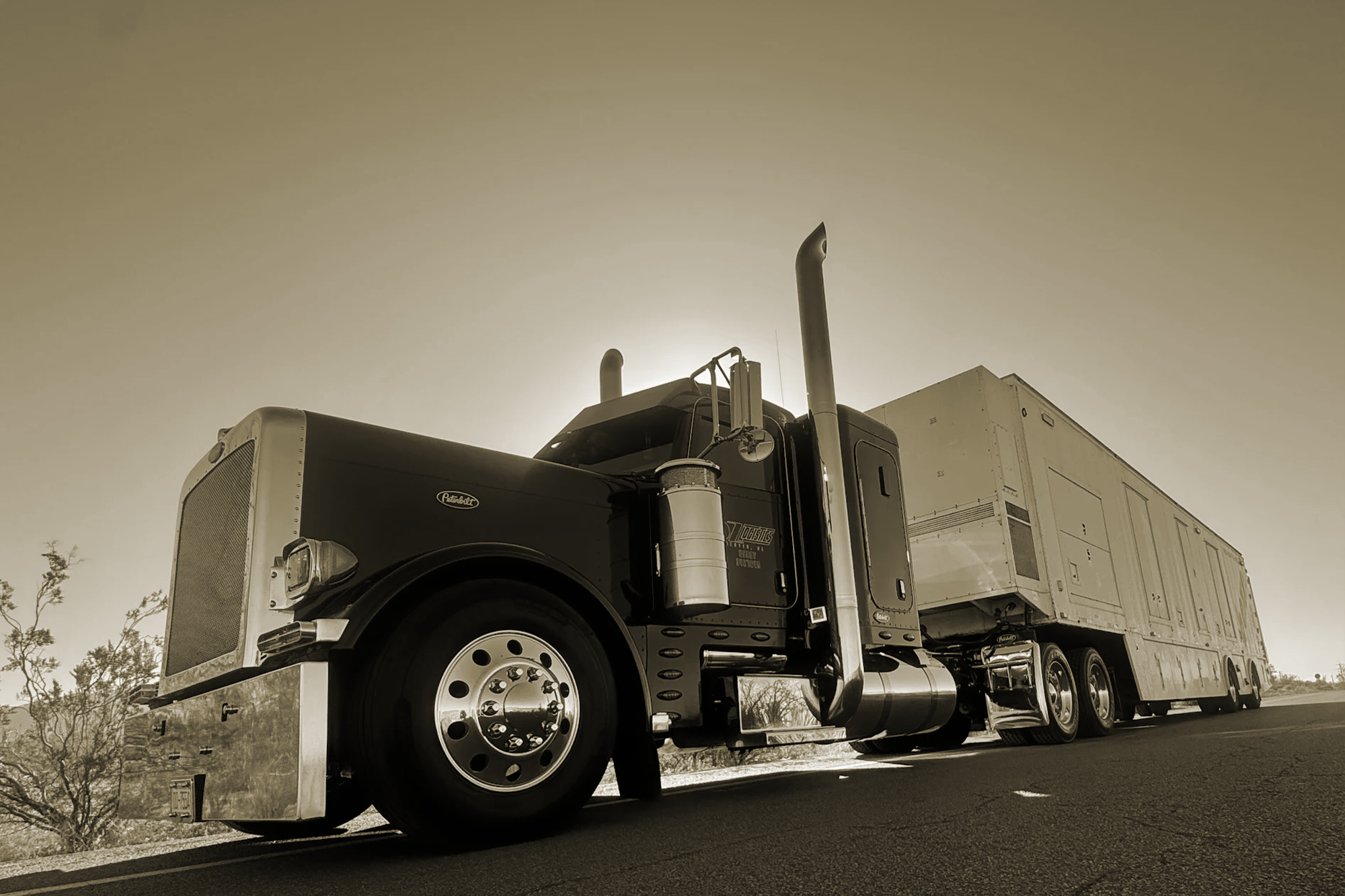

Vehicle Specific Info

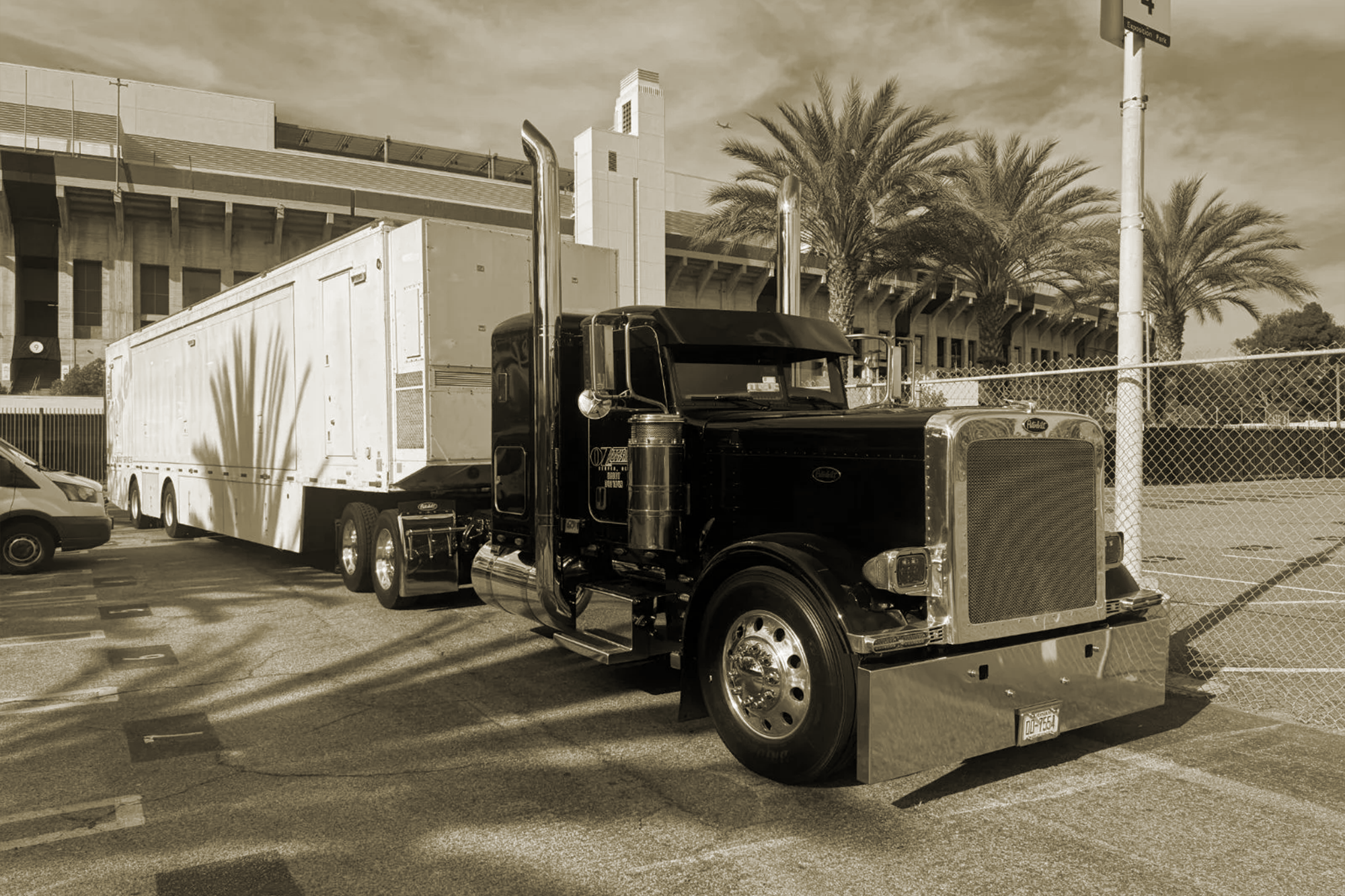

53' long x 13'6" high x 20' wide - single expando
Power: 2 240 volt, 3 phase, 400 amps

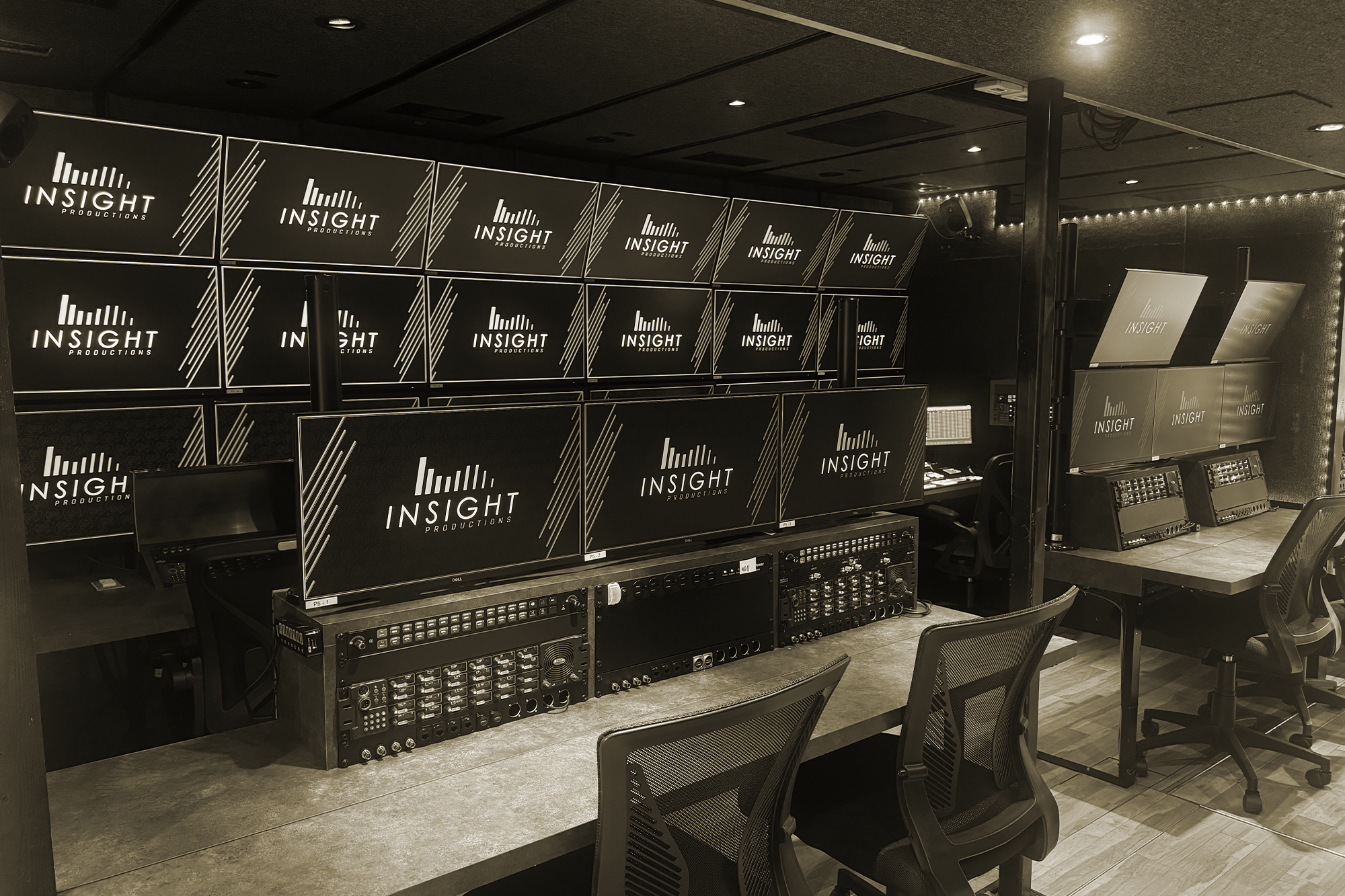

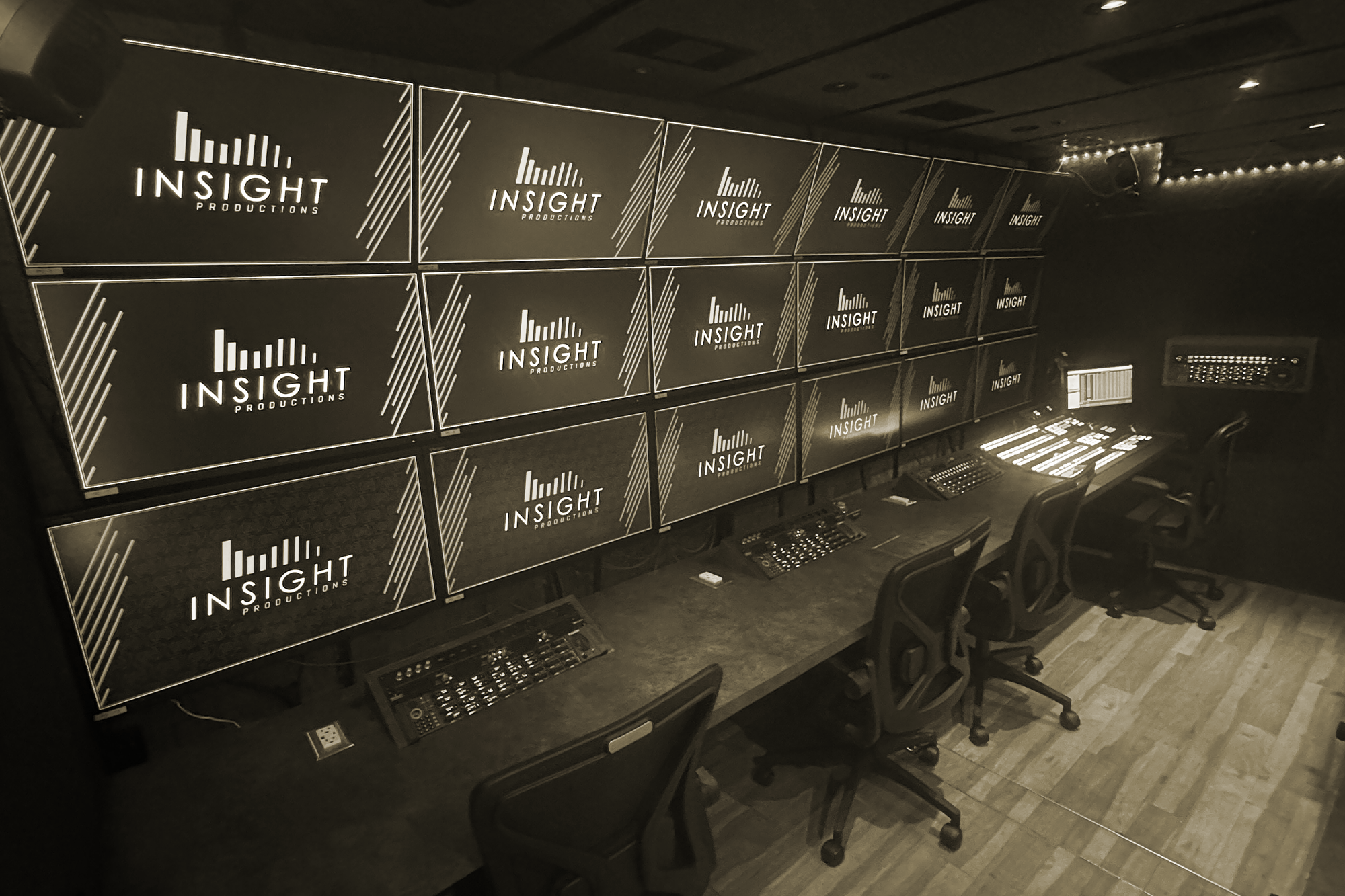

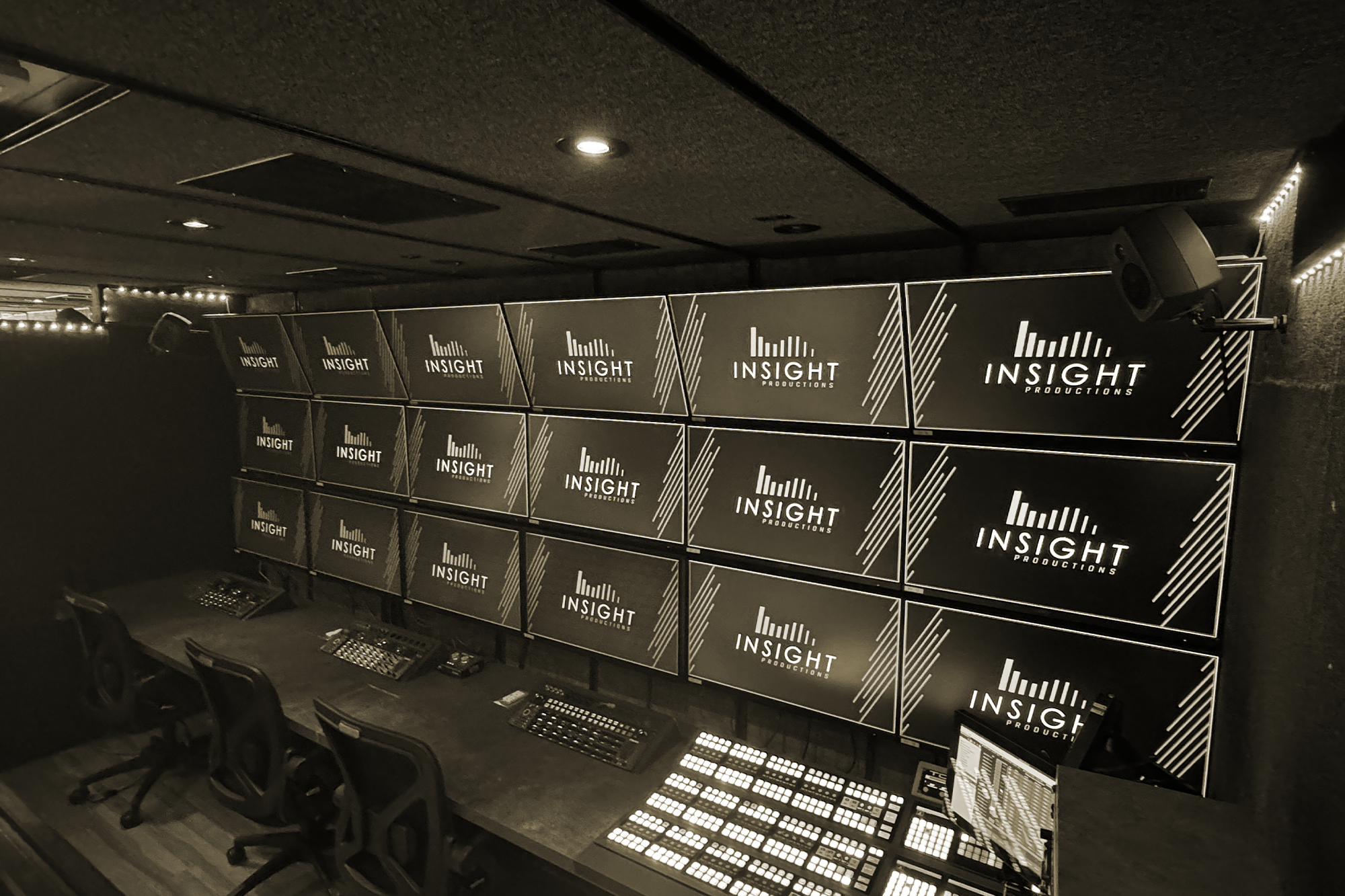

Production

Carbonite Ultra 60, 60 Inputs / 20 Outputs, 4 M/E
TD3S Touch Drive Panel

Communications

Clear-Com Eclipse HX-Omega Matrix Frame
--- 1x 64x64 Dante Card
--- 4x IFB Channels for Talkback
--- 10x Userstations 32-12 Key Buttons
--- 2x IP Freespeak Antennas
--- 5x FS2 1.9 4 Channel Belt Packs
--- 16x Agent IC & Station IC Accounts
--- 4x Lowband Radios
--- 6x Hardline to Cameras

Cameras

**Wired to support up to 12 CCUs**

Option A
--- Blackmagic G2 Ursa Broadcast Camera Kit

Option B
--- Sony HDC-2500 Camera System Kit

Option C
--- Sony HDC-3500 Camera System Kit

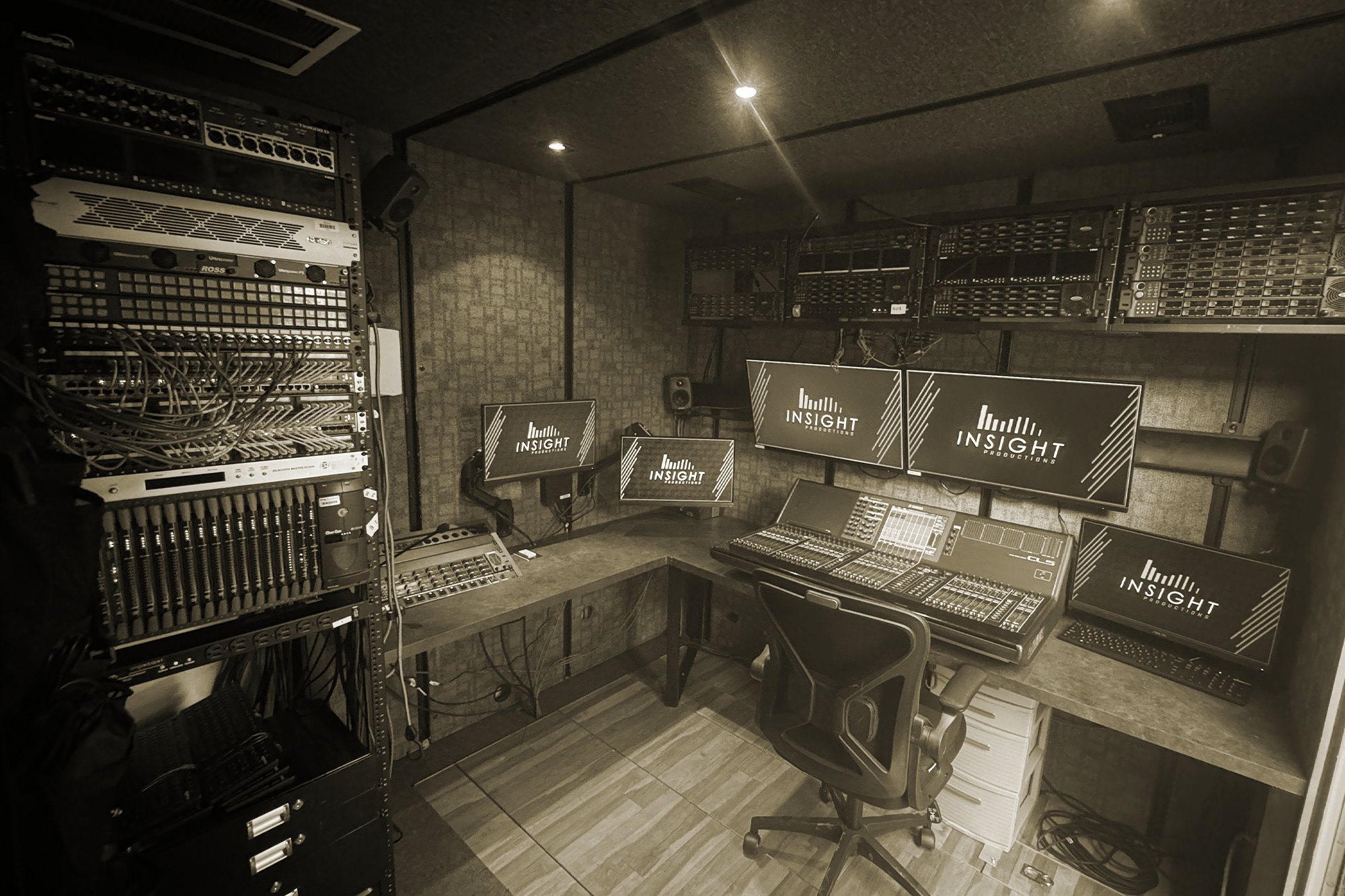

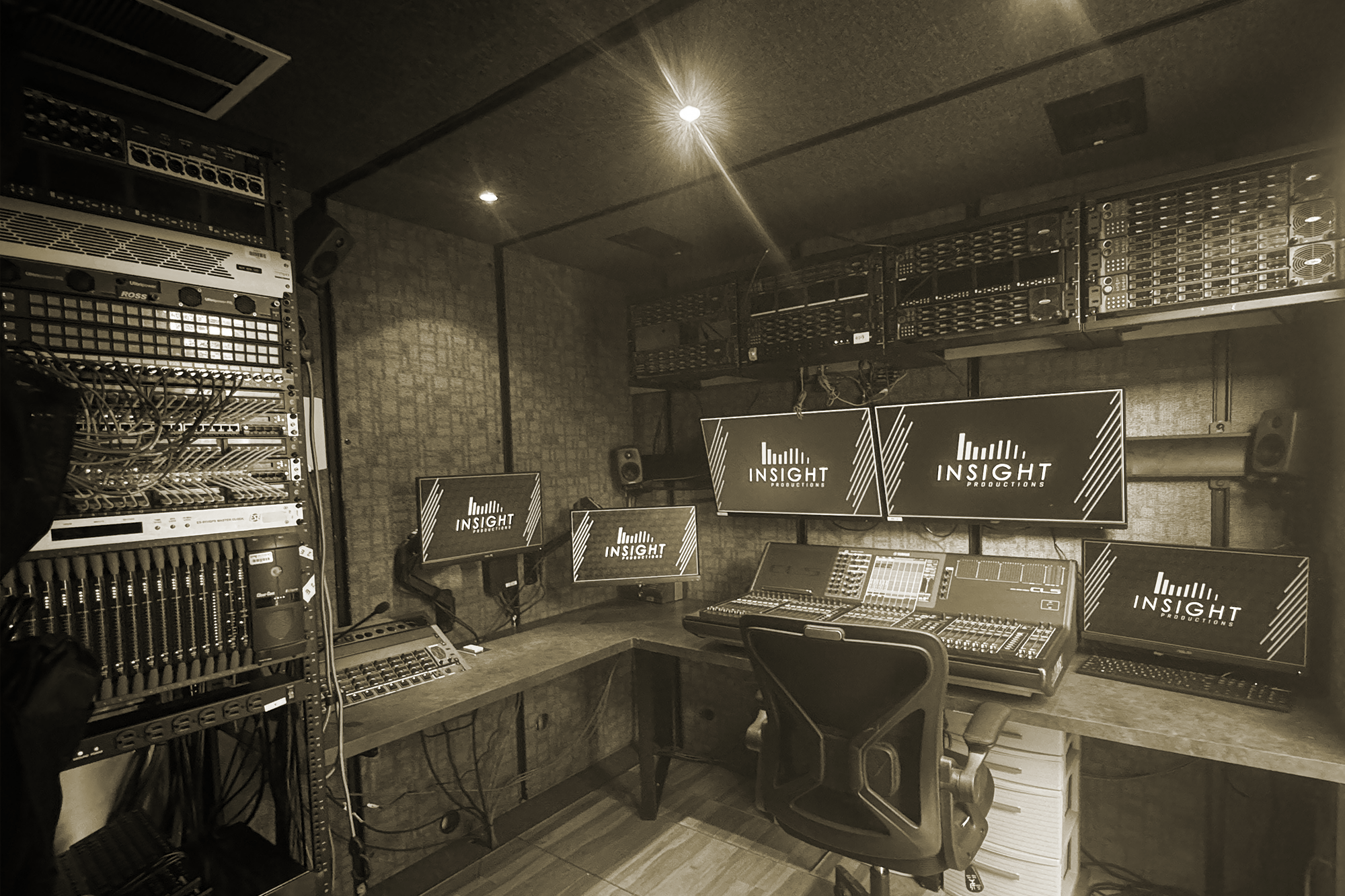

Audio

Yamaha CL5 Digital Audio Console
--- Mixing Channels: 72 mono, 8 stereo
--- Buses: 16 Mix, 8 Matrix, Stereo, and Mono
--- Faders: 34 total 100mm motorized faders
3x Yamaha Tio 1608-D2 Dante-Equipped I/O Rack
1x Dedicated Working Station for Dante Patching & Routing
1x Audio Spot Box for Playback Control (Touchscreen)
4x 7 Inch Gentech Studio Monitors
4x 6 Inch Overhead Control Room Mix Speakers
4x Studio Tech - Model 204 Announcer Console

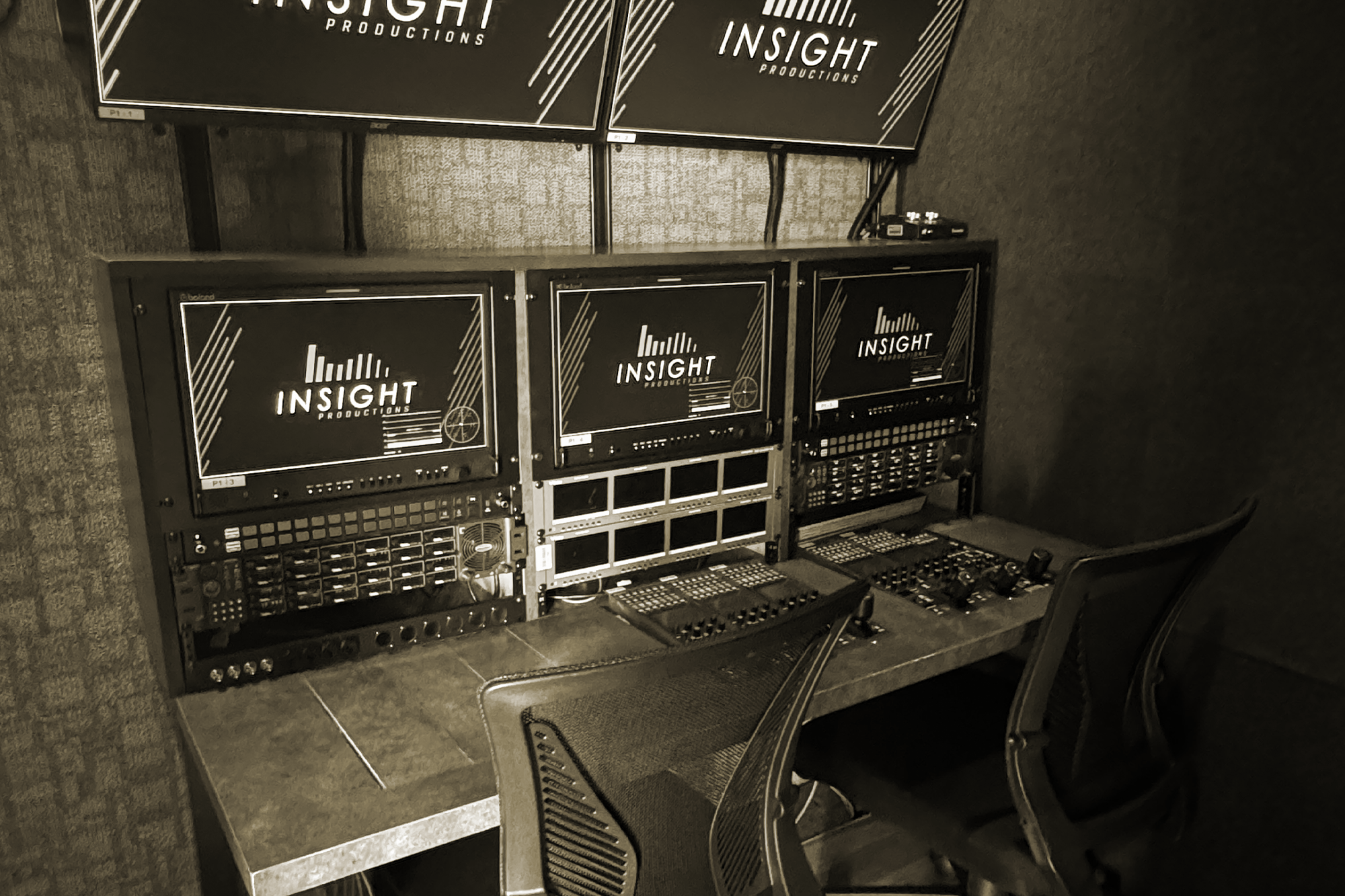

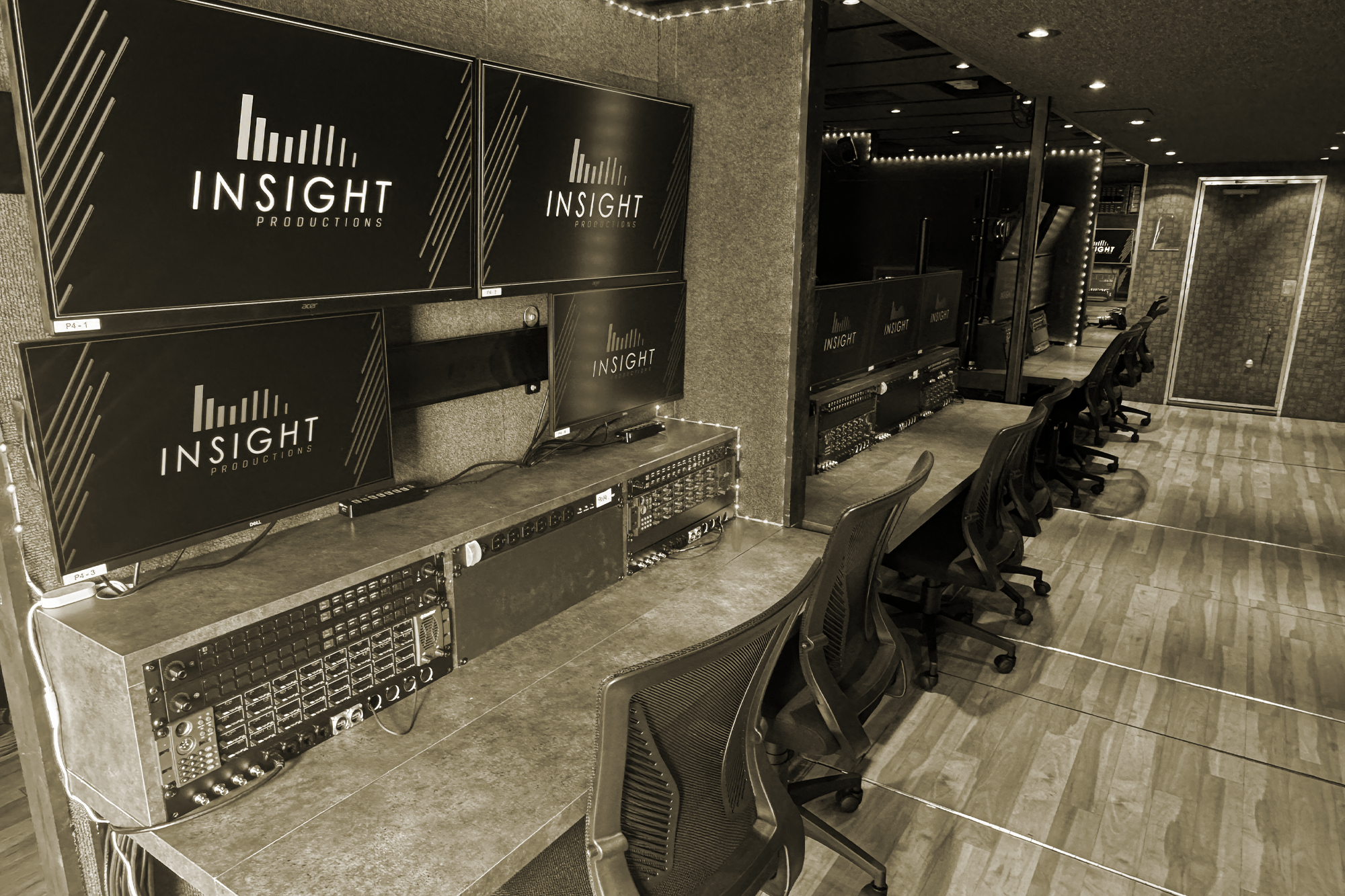

Video

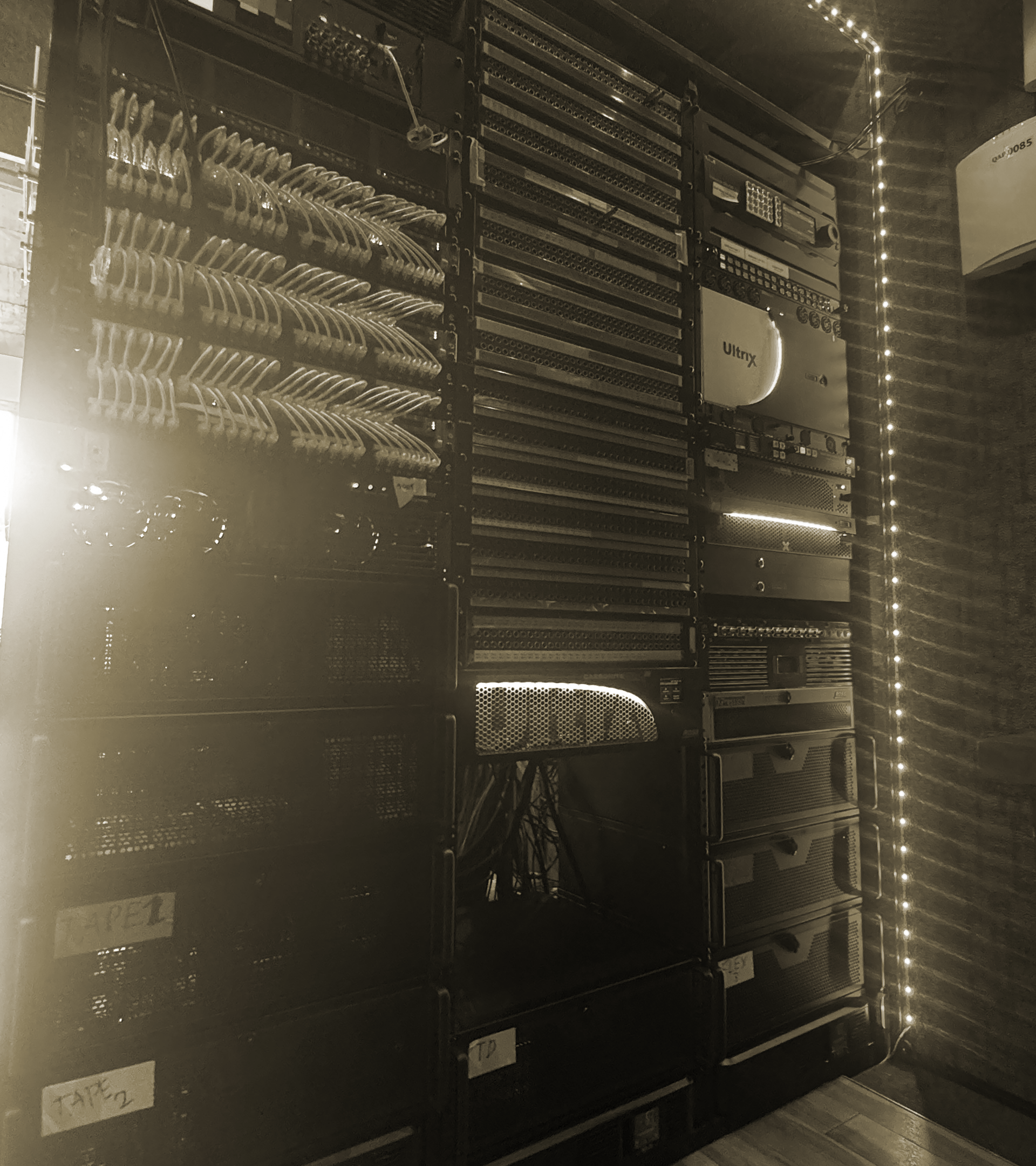

Ross Ultrix FR5 Router
Blackmagic 80x80 Router

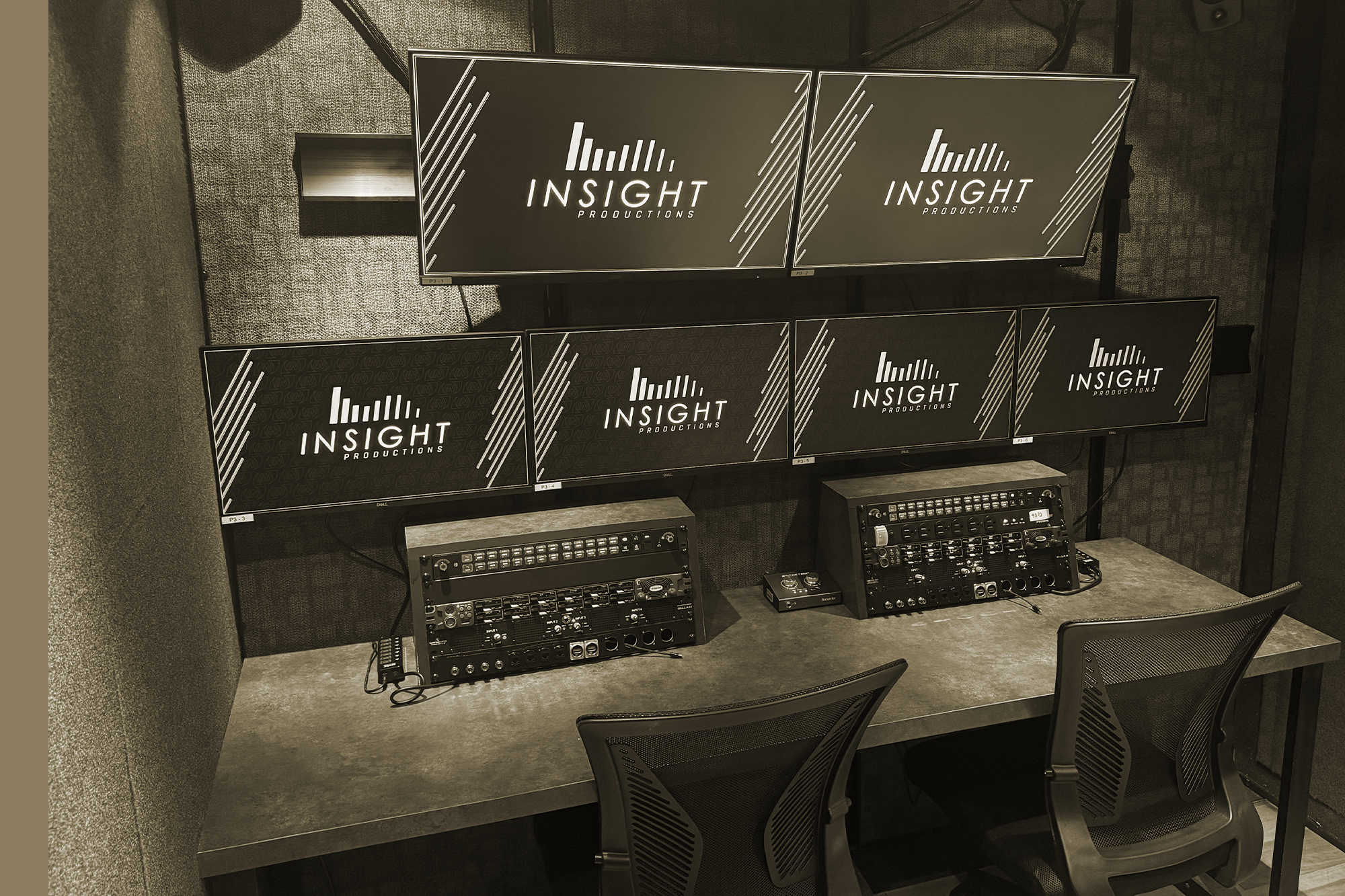

Record & Replay

VMIX Replay, 6 Channel HD
Abekas Mira, 6 or 8 Channel HD

** EVS Available Upon Request **

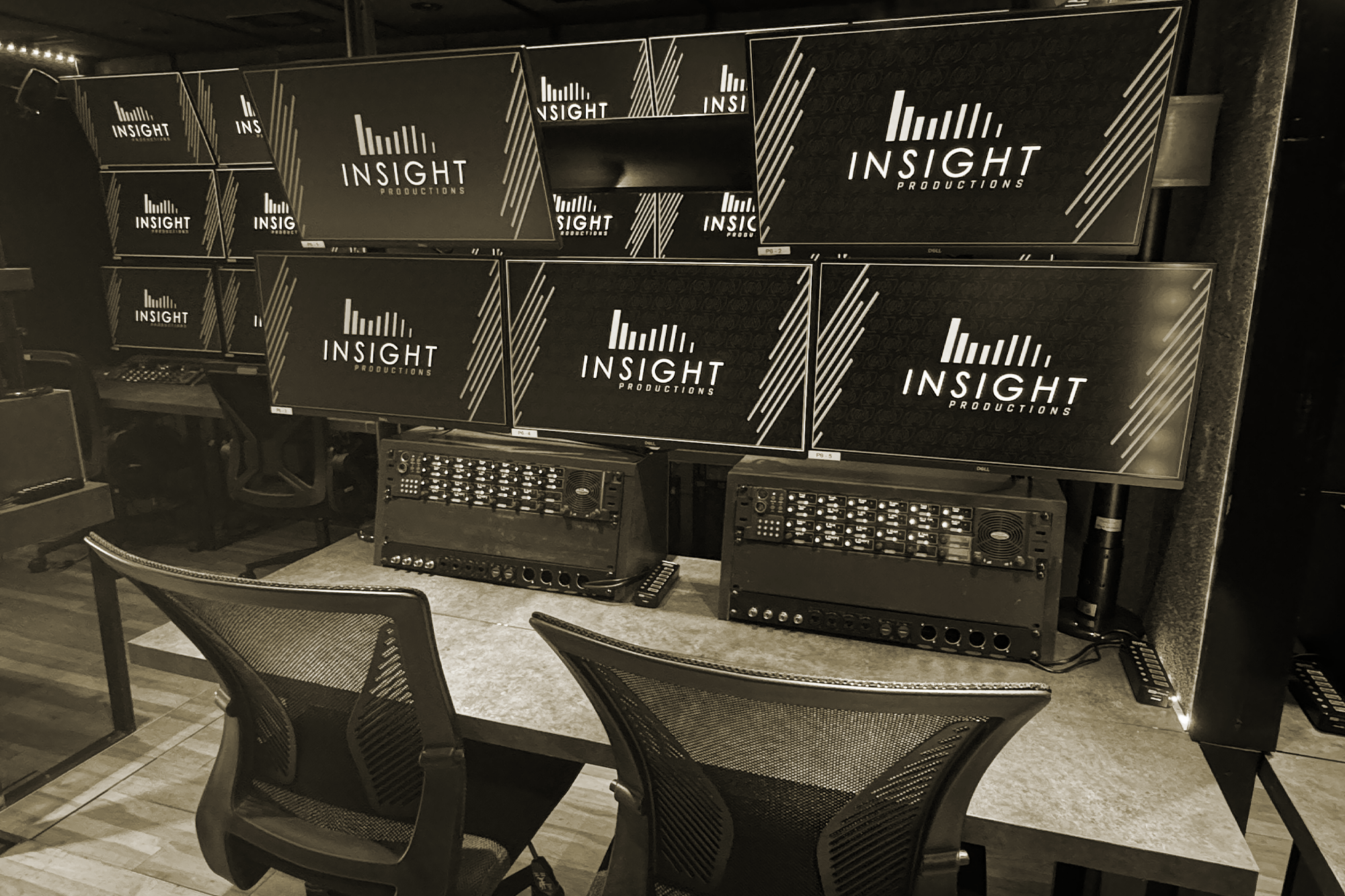

Graphics

** Upon Request **

--- Xpression (2ch or 3ch)
--- Cyron - Prime CG
--- VizRT (2ch)
--- CharacterWorks (2ch)

Support Equipment

3x Field Kits
--- 8by One-Direction Fiber Mux
--- Yamaha Tio 1608-D2 Dante-Equipped I/O Rack
--- Battery Back-Up UPS
--- 48-port 10gig Managed Switch
